Specifications

  • Dimensions
    add remove
    • Length:
      102.4 in
    • Ground clearance:
      4.9 in
    • Rake (steering head):
      26
    • Trail:
      6.7 in
    • Wheelbase:
      1,625.0 in
    • Tires, front specifications:
      BW 130/60B19 61H
    • Tires, rear specifications:
      BW 180/55B18 80H
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      906 lbs
    • Weight, in running order:
      944 lb
    • Luggage capacity – volume:
      4.7 cu ft (0.132 m3)
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight® 117
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.2:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      Dual, with crossover
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      124.6 ft-lb
    • Lean angle, right (deg.):
      34.3
    • Lean angle, left (deg.):
      33.4
    • Fuel economy:
      0.00 mpg
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Wheels, optional style type:
      Denim Black and Contrast Gloss Black Tomahawk, Gloss Black and Contrast Smoked Satin Tomahawk
    • Wheels, front type:
      Gloss Black and Contrast Satin Tomahawk
    • Wheels, rear type:
      Gloss Black and Contrast Satin Tomahawk
    • Brakes, caliper type:
      32 mm, 4-piston fixed front and rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      Headlight, running lights, directional lights, neutral, low oil pressure, check engine, turn signals, security/fault indication,gear indication, neutral, low fuel warning, cruise control, ABS, Low Tire Pressure/TPMS indicator, Traction Control, Rain Mode,
    • Gauges:
      - Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      75
    • Speakers:
      4
    • Speaker size:
      Boom! Audio Stage I
    • Headset specifications (if equipped):
      Boom! Audio 30K Wireless Headset
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade (USA & Canada only)
    • Languages:
      English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
    • Voice Recognition Languages: Tuner / Media / Navigation:
      English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
    • Text-to-Speech (TTS) languages:
      English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
    • Rider / passenger intercom:
      Standard (Passenger Headset Sold Seperately)
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing is out the door pricing inclusive of all dealer fees. Pricing listed is exclusive of sales tax and government fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

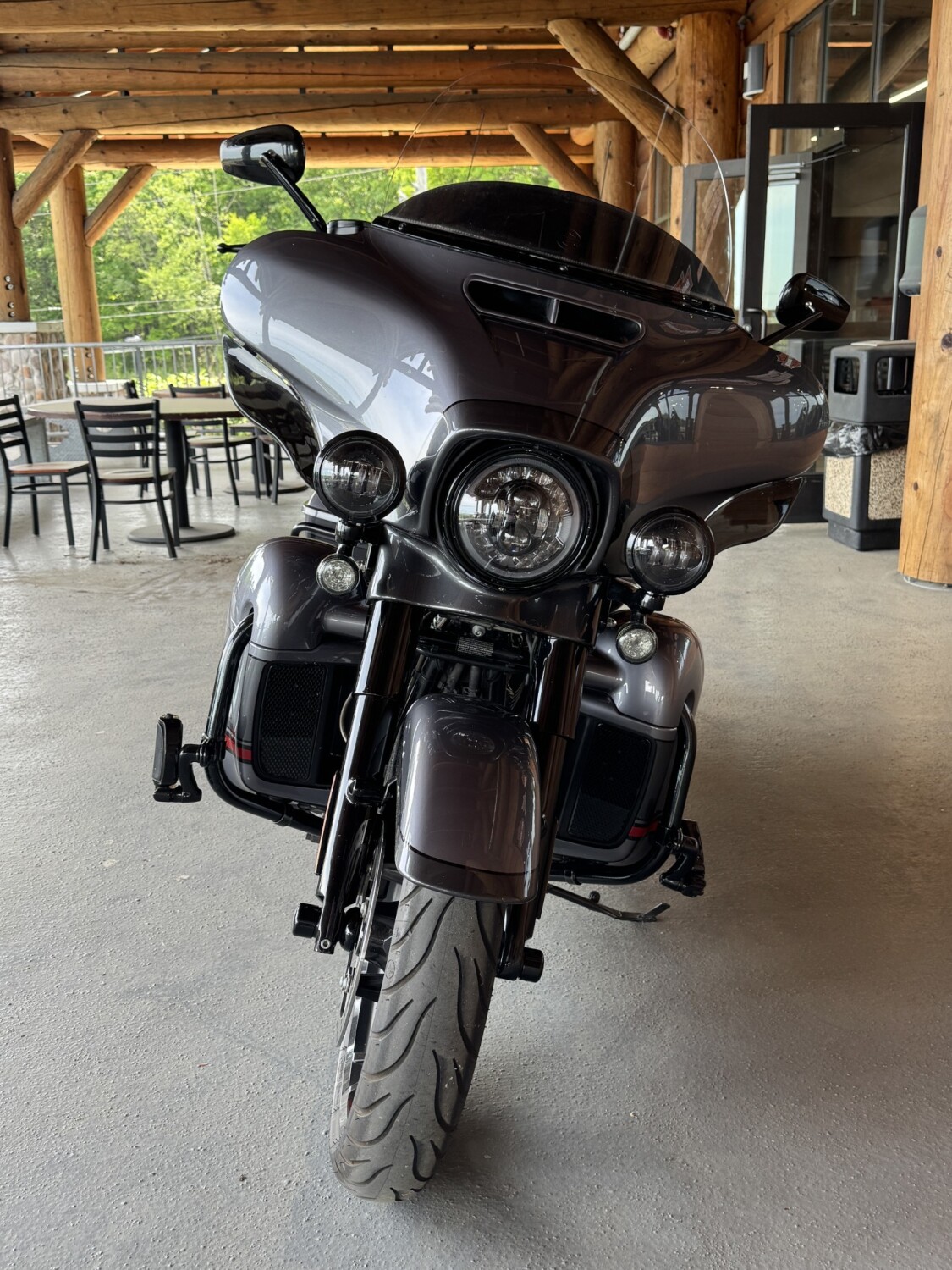

FLHTKSE 2020 CVO™ Limited

Price: $28,999.00
953032
1HD1TEH12LB953032
Harley-Davidson®
CVO
Pre-owned
2020
23319 mi
SMOKEY GRAY/STORM CLOUD W/PINSTRIPE
Pocono Mountain Harley-Davidson

570.992.7500
