2026 Harley-Davidson® Pan America® 1250 LimitedEvery Dead End Is Just The Beginning. The 2026 Pan America 1250 Limited steps up with new SW-MOTECH aluminum luggage, fresh paint and graphics, and refined finishes on the Revolution® Max 1250 motor for a sharper, classic look. Standard tubeless laced wheels, Adaptive Ride Height, and a Screamin’ Eagle® Quickshifter bring confidence and control when the ground gets unpredictable, while factory-installed guarding and auxiliary lighting make it a true turn-key adventure machine. It’s fully equipped, straight from the factory, and itching to get dirty. Features may include: Harley-Davidson ® Aluminum LuggageDesigned in collaboration with SW-MOTECH, these rugged aluminum panniers and top case deliver 120 liters of lockable and removable storage, including room for a full-face helmet in the top case. Tough, balanced, and weather-tight tested they hold fast through rain, dust, and miles of adventure without breaking stride.NEW Paint, Graphics + Badging: Fresh paint options, updated graphics, and refined badging underline the Pan America 1250 Limited’s premium, purpose-built ADV identity. A distinctive black fairing and exclusive fairing graphic pair with a new tank graphic to complete the look—tough, unified, and unmistakably Limited.Factory GuardingFactory-installed guarding shields critical components from rocks and debris, while the skid plate protects the engine, exhaust, and charging system from strikes below. Knee pads help keep paint free from dirt and grit whether you’re seated or standing through the rough stuff.Standard Auxiliary Lighting + Daymaker® Adaptive HeadlampStandard Auxiliary Lighting and Daymaker Headlamp-Factory-installed auxiliaryRevolution Max 1250 + New Black Powertrain FinishThe liquid-cooled Revolution Max 1250 cranks out 150 hp with that notoriously instant torque. New finned engine covers tighten its stance for a more compact-looking, muscle -bike vibe, while a blacked-out powertrain finish gives it the high-performance edge Pan America riders asked for. Built to run hard for long days, it stays cool and composed on any surface, and looks like a work of art while it doe s it.Standard Screamin’ Eagle QuickshifterClutch-less upshifts and downshifts keep momentum intact when the surface changes. The NEW adjustable shift lever lets you dial in the feel of the bike through gears the moment you ask, whether on highway sweepers or rutted climbs.

Specifications

  • Dimensions
    add remove
    • Length:
      92.3 in
    • Rake (steering head):
      25
    • Wheelbase:
      62.2 in
    • Tires, front specifications:
      120/70R19 60V
    • Tires, rear specifications:
      170/60R17 72V
    • Oil capacity:
      4.75 qt.
    • Weight, as shipped:
      626 lbs
    • Weight, in running order:
      661 lb
    • Luggage capacity – volume:
      4.24 cu ft (0.12 m3)
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      93.7 ft-lb
    • Engine torque (RPM):
      6750
    • Horsepower:
      150 HP / 112 kW @ 8750 rpm
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 19/48 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Front fork:
      1.9 in inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, type:
      Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Infotainment
    add remove
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Languages:
      Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing excludes applicable taxes, title and licensing, dealer set up, destination, reconditioning and are subject to change without notice. Pricing listed does include all documentary fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details. Dealer reserves right to correct any pricing error prior to final sale.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

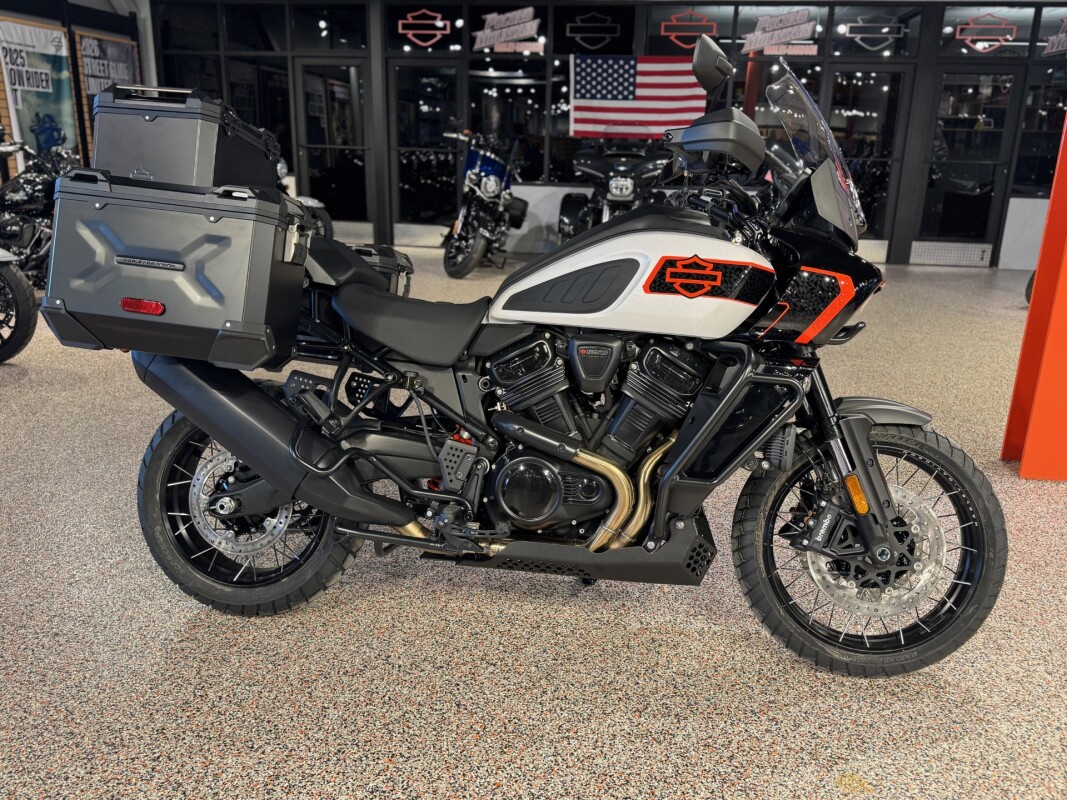

2026 Harley-Davidson® Pan America 1250 Limited RA1250L
